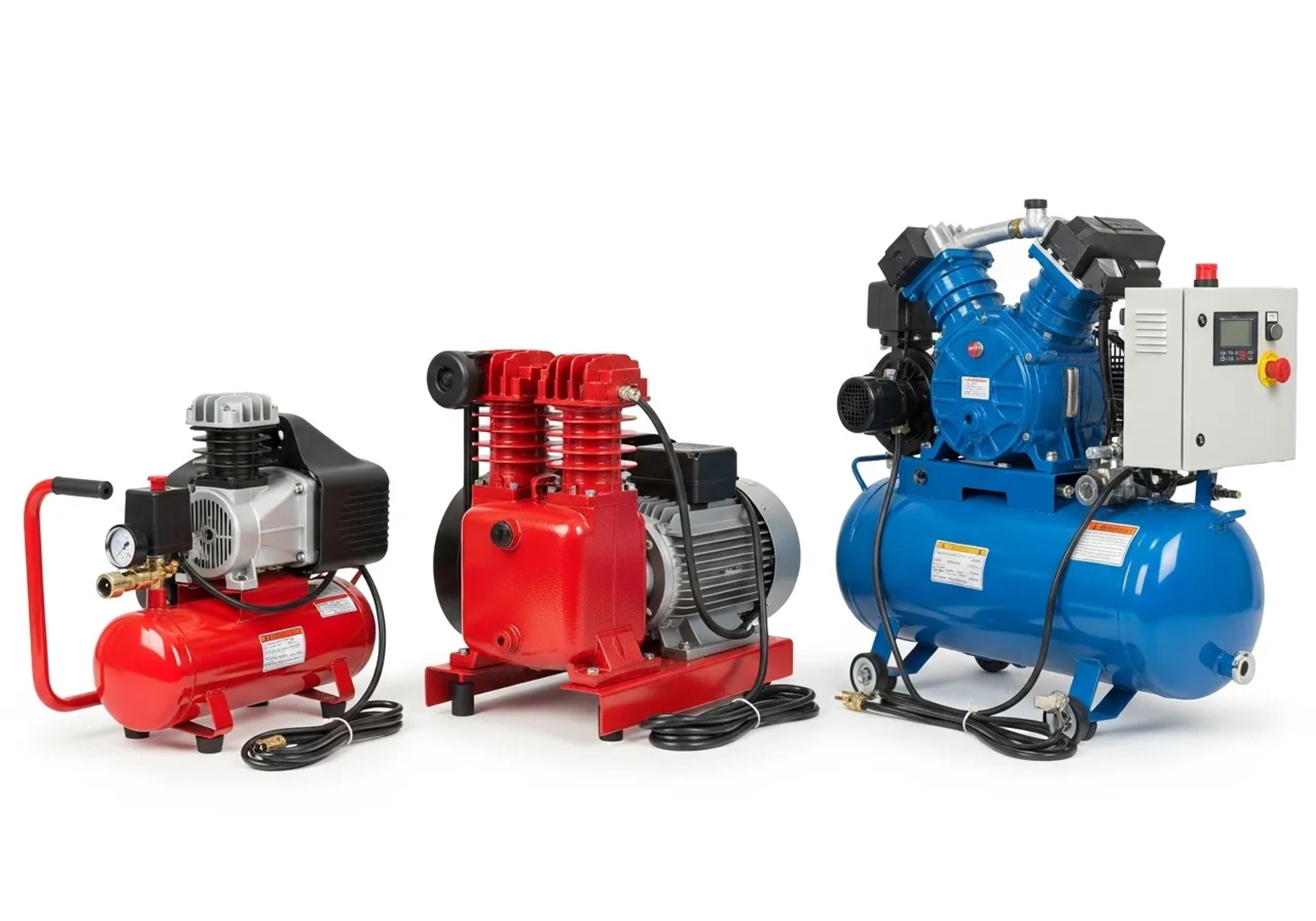

What is an Air Compressor and Why is it Important?

 is a machine whose primary function is to draw in air from the outside and subject it to a compression process to generate high

 as required, in order to use that pneumatic energy to drive various equipment.

The applications of air compressors are diverse and cover a wide range of sectors:

 Such as inflating motorcycle and car tires, or DIY painting tasks.

 Such as auto repair shops, car care centers, and furniture workshops.

 Used in production lines, pneumatic systems, and driving heavy machinery.

Key Components of a Complete Air Compressor System

Many people might misunderstand that having just the air compressor unit is enough. In reality, an efficient

 that extends the lifespan of downstream machinery requires other supporting components:

 Plays a crucial role in reducing the amount of water and moisture mixed with the compressed air to prevent rust in the piping system and machinery.

 Functions to store the produced compressed air, helping to maintain constant pressure, dissipate heat from the air, and trap water vapor that condenses into droplets initially.

 Helps filter out dust and impurities before the air enters the system.

 Very important in the Heat Exchange process to reduce the temperature of the compressed air, preventing water condensation that could corrode the air delivery piping system.

Types of Air Compressors Based on Working Principles

 can be categorized into several types based on their usage characteristics, but the most popular ones are:

This is the most popular and commonly seen type.

 Uses a motor to drive a piston up and down within a cylinder to compress air.

 Affordable price, capable of generating very high pressure (from 1 bar up to 1,000 bar), and easy to move.

 Loud noise, high vibration, and requires periodic rest intervals (should not run continuously for too long). Suitable for general auto repair shops or painting jobs.

 Uses two screw rotors rotating towards each other to compress air.

 Provides high-quality air, quieter than piston types, and most importantly,

 Available in Belt Drive, Direct Drive, and Variable Speed Drive (VSD) which helps save energy.

 Uses a diaphragm sheet to block air from contacting metal and lubricating oil, resulting in

 Suitable for pharmaceutical, food industries, and dental work in hospitals.

 Notable for consistent and steady pressure.

 Suitable for very large factories requiring massive amounts of air volume.

Benefits and Applications in Various Professions

 Used to drive machinery, conveyor systems, and various pneumatic tools in factories.

 Nitrogen gas is compressed into snack bags (Packaging) to maintain crispness and provide cushioning, as well as in pharmaceutical production processes requiring high cleanliness.

 Used with dental chairs, drills, and medical equipment, requiring Oil-Free compressors that are quiet and clean.

 Serves as the power source for air guns, impact wrenches, spray guns, and tire inflation.

 correctly not only saves electricity costs but also helps prevent potential accidents.

 Never use high-pressure air to blow playfully at the body or skin directly, as it can cause severe internal injuries and skin damage.

 Be careful of clothing or body parts getting entangled with belts or fans while the machine is running.

 Do not touch the pump head or motor during operation as they become extremely hot.

 Do not adjust the pressure beyond standard limits (e.g., small compressors should not exceed 8 bar) as it may cause the tank to explode if it is old or corroded.

Maintenance Techniques to Extend Lifespan

 To prevent rust from eating the tank from the inside and to maintain the tank's capacity accuracy.

 Room temperature should not exceed 40 degrees Celsius, with good ventilation to dissipate heat.

Check Electrical System and Rotation Direction:

 For 3-phase power, ensure the motor rotates in the correct direction according to the arrow.

 Even a small air leak causes the machine to work harder and consume a massive amount of electricity.

FAQ: Frequently Asked Questions About Air Compressors

 A machine that compresses air to high pressure to use as energy for driving various equipment.

Q: Which type of compressor should be used for painting?

 For small jobs, a piston type can be used, but it requires a reasonably large air tank to ensure stable pressure. However, for factory levels, a screw type should be used.

 To eliminate moisture from the air, preventing water from damaging pneumatic tools or ruining workpieces (e.g., water causing paint discoloration).

Q: What causes an unusually loud noise in an air compressor?

 It may be caused by a lack of lubricating oil, broken bearings, or defective valves. Stop the machine immediately and call a technician for inspection.

This article is compiled by pneumatic system experts to provide accurate knowledge regarding the selection and maintenance of air compressors.

Air Compressor: The Complete Expert Guide to Selection and Maintenance

เครื่องปั๊มลม (Air Compressor): คู่มือความรู้และการเลือกใช้ฉบับเต็ม

How to Use an Electric Concrete Breaker Safely and Effectively

การใช้งานเครื่องสกัดไฟฟ้าอย่างถูกวิธี

, is indispensable equipment for demolition and construction work in Thailand. This equipment destroys existing concrete structures through high-frequency impact force, whether removing floors, demolishing walls, breaking pavement, or digging trenches for pipe installation.

 relies on generating repetitive impact force through a hardened chisel bit. The generated impact transfers to the concrete surface, creating cracks and fractures that break the material into pieces. The frequency and energy of impacts determine working efficiency.

Construction projects in Thailand require various sizes and types of

, from small units for residential repairs to large machines for building demolition or road work. Selecting appropriate equipment for specific job requirements directly impacts efficiency and workplace safety.

Before deciding to purchase or rent, understanding

types and operating principles of demolition equipment

 is essential, as each type has distinctly different advantages and limitations.

 operate using electric motors to drive impact mechanisms. They are popular choices for indoor work or areas with electrical access due to convenience and independence from additional equipment.

 include mobility and ease of transport. Lighter weight than pneumatic systems makes them suitable for confined spaces or elevated work positions. Operating noise levels range from 85-95 decibels, slightly quieter than pneumatic systems.

 ranges from 10-70 Joules depending on size and model. Small units at 10-20 Joules suit light work like tile removal, while 40-70 Joule units effectively handle thick concrete floor demolition.

Renovation and remodeling work inside buildings

Areas with electricity but no compressed air system

 operate using compressed air from air compressors as their power source. They are the primary choice for large-scale demolition and field construction requiring high power output.

Key advantages of pneumatic systems include higher impact force, ability to work continuously without heat buildup issues like electric motors, and high durability in harsh environments including dust, moisture, or water exposure.

 ranges from 50-150 Joules or higher, suitable for thick concrete demolition, road work, or mining operations. Impact frequency reaches 900-1,500 blows per minute depending on supplied air pressure.

Field construction without electrical access

High-power continuous operation requirements

, the unit measuring energy per impact, is the most important specification for selecting appropriate equipment size matching concrete thickness and hardness. Higher Joules means better capability for heavy-duty work.

Equipment selection should primarily consider job characteristics. Tile or plaster removal requires only 10-20 Joules. Breaking 10-15 centimeter thick concrete floors needs 30-50 Joules. Reinforced concrete or road demolition requires 60 Joules or higher.

Beyond impact energy, equipment weight requires consideration. Heavier machines provide additional downward force improving breaking efficiency, but cause faster operator fatigue. Appropriate weight selection must account for working duration and operating posture.

, air consumption requirements (CFM) need evaluation. Large units may require 70-90 CFM, demanding appropriately sized

. Proper air system planning is essential for pneumatic breaker applications.

Indoor work involves several constraints including limited space, restricted ventilation, and noise concerns for neighboring occupants. Medium-sized

 are most suitable for these applications.

Recommended impact energy for indoor work is 20-40 Joules, sufficient for tile floor removal, partial wall demolition, or door and window enlargement. Equipment weight should range from 5-15 kilograms for extended use without excessive fatigue.

Dust management is critical for indoor work. Many newer models feature built-in dust extraction or can connect to industrial vacuums, reducing airborne dust and maintaining safe working environments.

Field work presents environmental challenges including heavy dust, heat, and humidity. Pneumatic

 are popular choices for these applications.

. Generally, compressors delivering at least 100-125 CFM at 90 PSI are required for full breaker performance.

Equipment durability is paramount for field work. Machines should feature robust construction, impact resistance, and effective dust protection. Selecting reputable brands with available spare parts helps minimize project downtime.

The decision between buying or renting depends on multiple factors with no universal answer suitable for all situations.

Purchasing suits businesses with regular demolition or construction work, using equipment at least 2-3 days weekly, with storage space and maintenance-capable technicians. Advantages include immediate availability and no per-use costs.

Renting suits specific projects with defined timelines or businesses wanting trial periods before investment decisions. Rental also provides access to large or specialized equipment without major investment, plus freedom from maintenance concerns.

 involves several risks requiring careful attention: injuries from flying concrete debris, hearing loss from loud noise, and vibration-induced injuries.

Essential personal protective equipment includes safety glasses or face shields for debris protection, ear plugs or muffs for hearing protection, anti-vibration gloves for reducing hand and arm impact, and steel-toe safety boots for foot protection from falling debris.

Limiting continuous operation time is essential. Experts recommend breaks every 30-45 minutes allowing body recovery from vibration exposure. Rotating operators within teams helps reduce Hand-Arm Vibration Syndrome risk.

 is a leading Japanese brand renowned for high-quality construction equipment, including

 systems. AIRMAN products are designed for harsh working environments and reliable performance.

 serves as the authorized AIRMAN distributor in Thailand, providing comprehensive services including new equipment sales, Japanese imports, and both short-term and long-term rental services. Their engineering team and expert technicians offer consultation for appropriate equipment selection, along with after-sales service and genuine parts support.

With over 40 years of experience in the construction machinery industry, Namsang understands the needs of contractors and construction businesses in Thailand. Whether for small jobs or large projects, they provide targeted recommendations and investment value.
